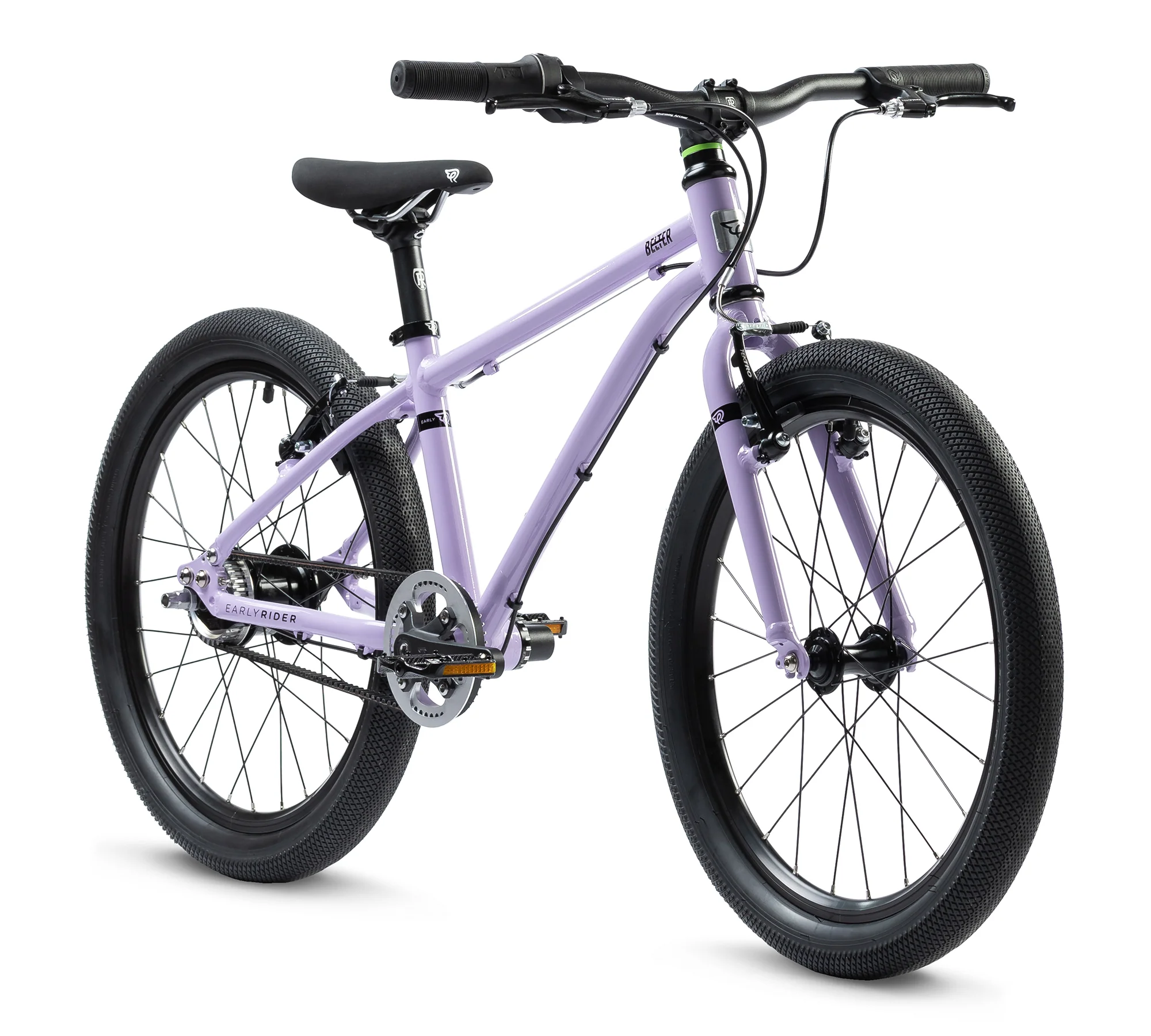

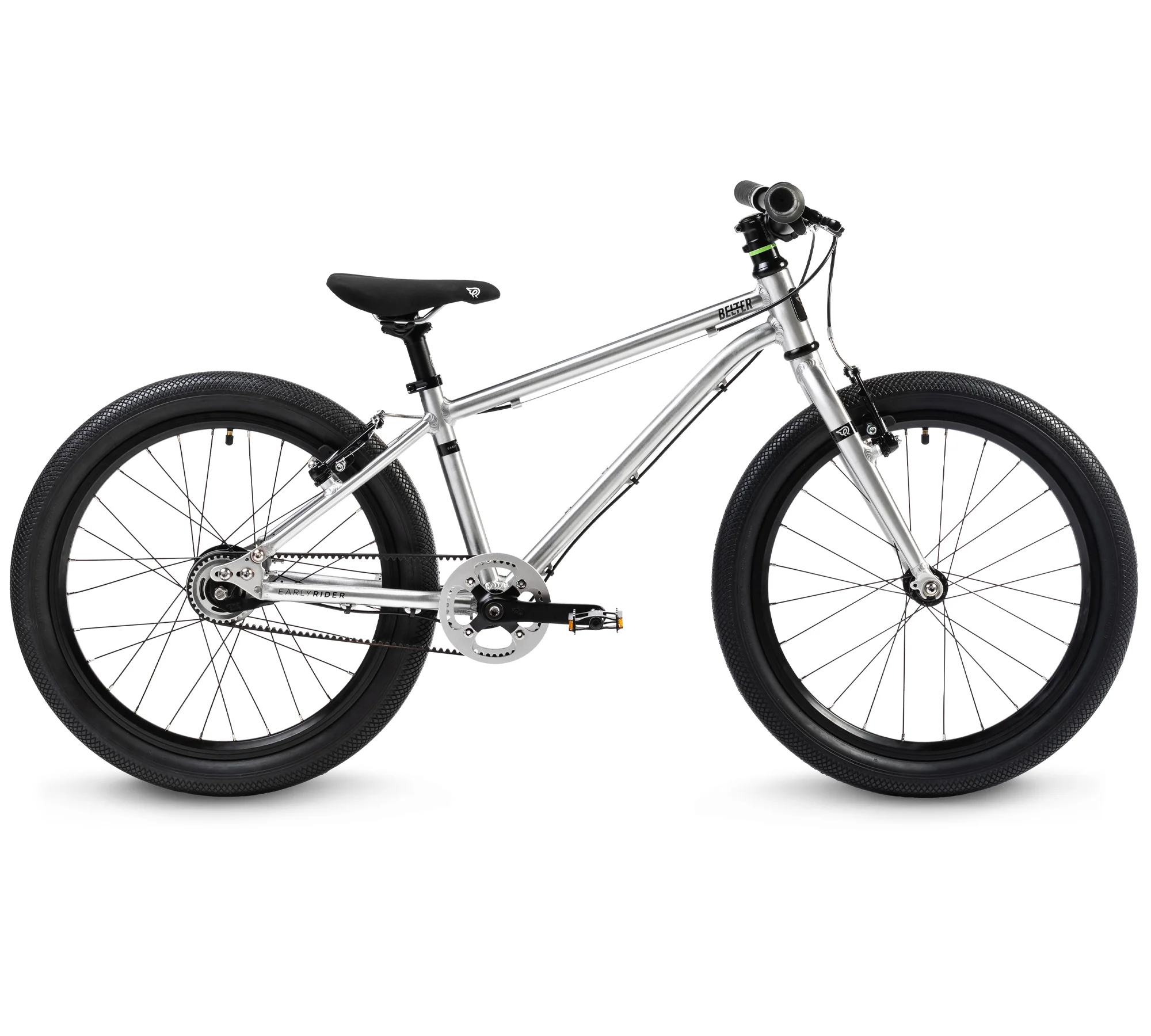

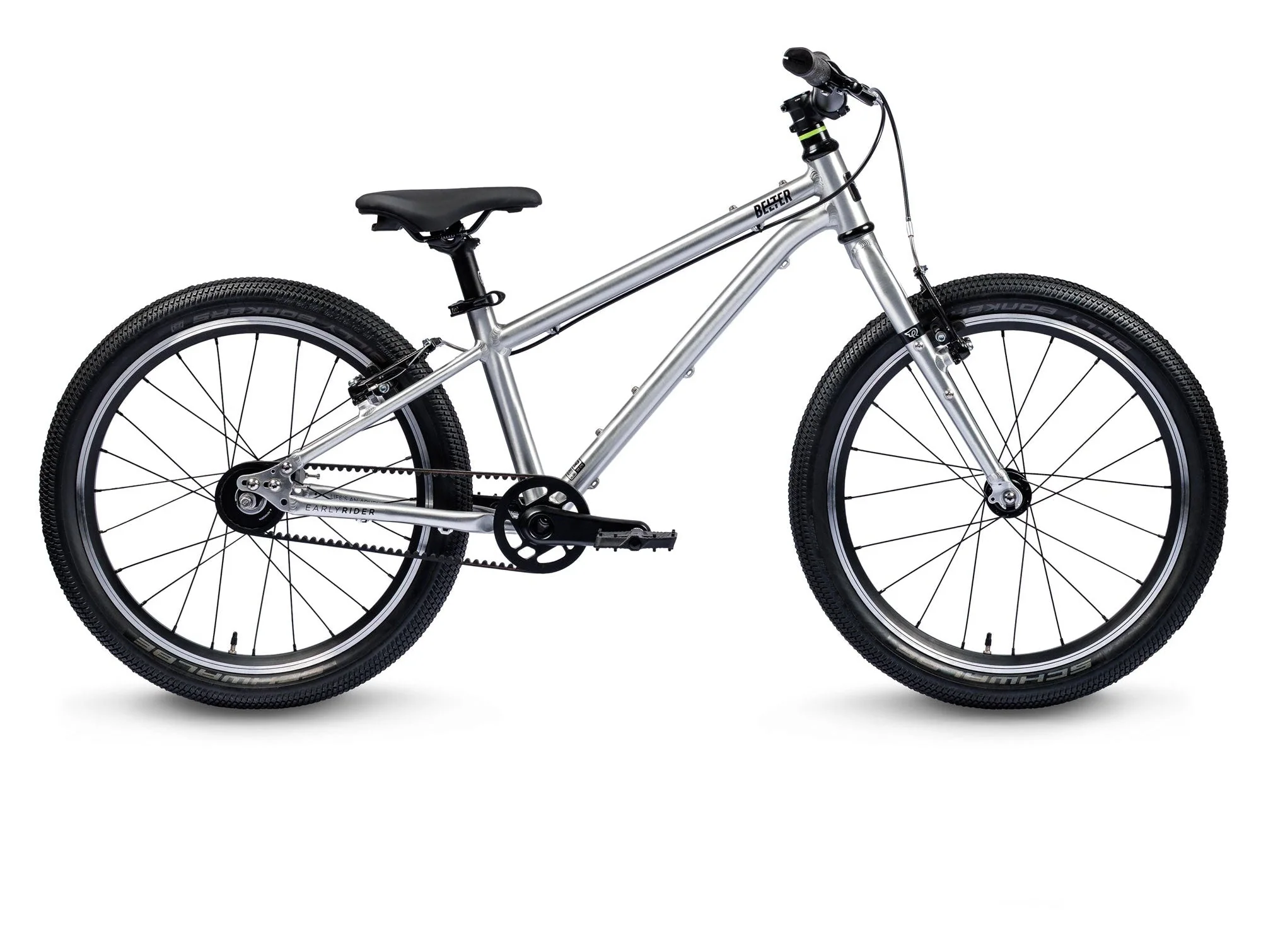

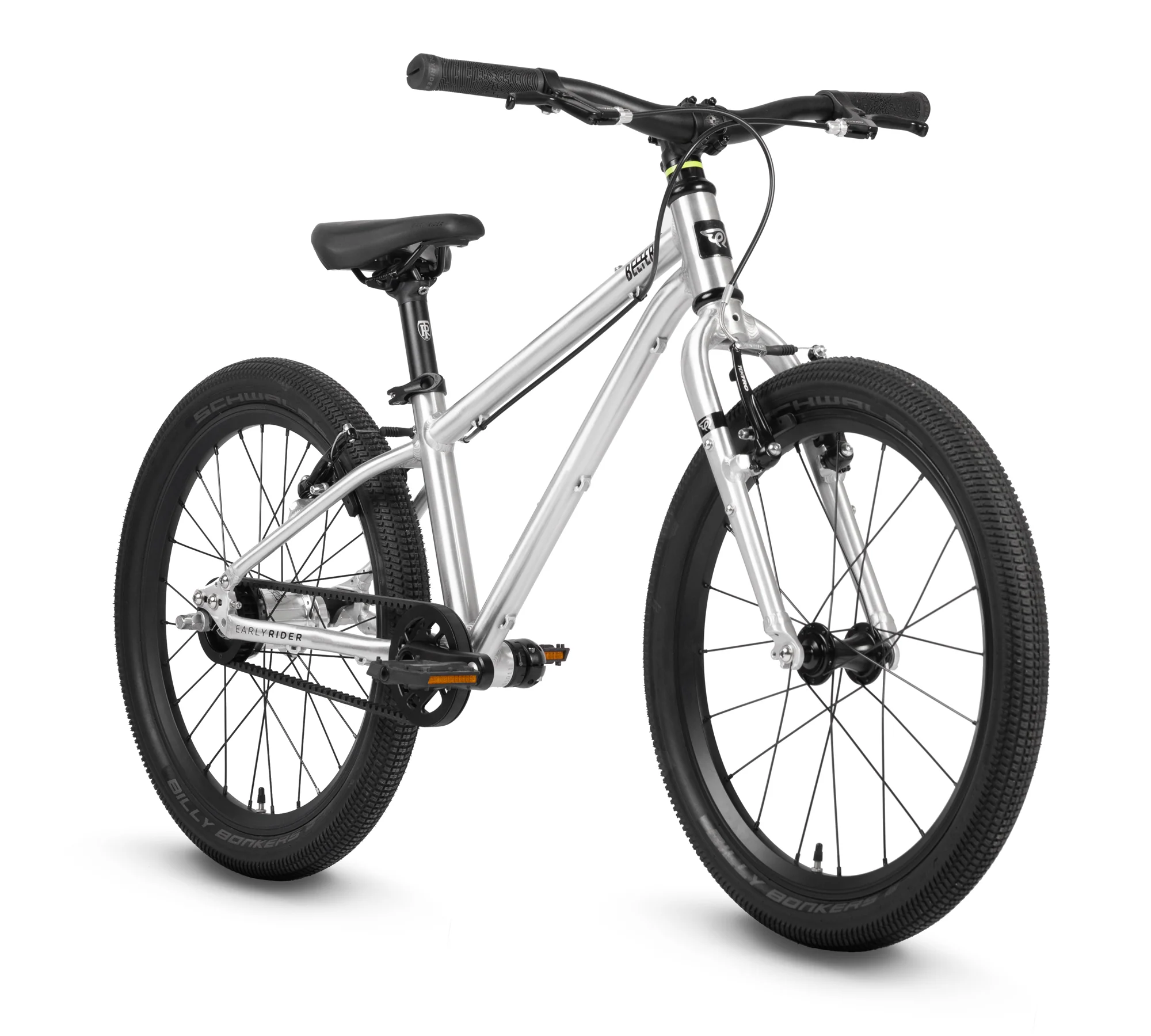

Turn heads as well as corners.

The Belter 20 elevates the ride to school to a whole new level as style meets functionality. An internal geared hub means no maintenance and if your kids have a tendency to 'rest' their bike on the pavement, there's no fragile derailleur to put them out of action. The Sturmey hub is remarkably smooth too and with 4 gears inside its bombproof shell, it goes as well as it looks. No mech, no greasy cogs just beautiful clean lines and a super clean ride.

A characteristically lightweight build, comfortable geometry and effortless belt drive it makes light work of those backpack laded rides to school. And, when it comes to bikeability, the custom Ritchey controls will certainly provide a much appreciated level of confidence. This bike is about looking great and feeling great.

ASSEMBLY INSTRUCTIONS:

Your bike will arrive carefully packaged and boxed with the rear wheel attached. The front wheel will need attaching using the bolts supplied and front brake re-engaged. The handlebar will be ziptied to the top tube, simply remove the bars and all packaging and attach to the stem. Add the saddle and adjust to the required height. Then simply add the pedals. Please retain your manual.



[Left column]

INSIDE LEG

52CM

FRAME

HAND BRUSHED AL6061, FORGED DROP OUTS

FORK

HAND BRUSHED AL6061, FORGED DROP OUTS

STEERER TUBE

AL6061

CRANKS

CNC'D AL6061, 120MM

PEDALS

ER AL6061, CAGE, CARTRIDGE BEARING

BOTTOM BRACKET

ER EXTERNAL CUP, THREADED, SEALED CARTRIDGE BEARING

RIMS

20 X 24H FRONT, 28H REAR, DOUBLE WALLED AL6061

REAR HUB

STURMEY ARCHER X-RF4, 4SP IGH

FRONT HUB

BELT

GATES POWERGRIP 976

FRONT SPROCKET

CNC'D AL6061, 46T, AL6061 AXLE

REAR SPROCKET

CNC'D AL7075, 32T



*Every effort has been made to ensure accuracy throughout this website. However, Early Rider reserves the right to change prices and bike specifications without prior notice*

CLICK HERE TO VIEW THE USER MANUAL

[Right column]

WEIGHT

8.0KGS W/O PEDALS

SHIFTER

STURMEY IGH TWIST SHIFT

BRAKES

TEKTRO 837AL

LEVERS

TEKTRO SHORT REACH, JL-510TS

FRONT TYRE

MAXXIS DTH 20 x 1.95 120tpi FOLDING TYRE

REAR TYRE

MAXXIS DTH 20 x 1.95 120tpi FOLDING TYRE

HEADSET

1 1/8” CARTRIDGE BEARING, CONVENTIONAL

STEM

RITCHEY OS FORGED AL6061, 35MM REACH

BARS

560MM RITCHEY OS DOUBLE BUTTED AL6061, 18MM RISE

GRIPS

ER WING 120L, 70R

SEAT POST

RITCHEY, AL6061, 25.4MM x 250MM

SADDLE

ER WINGED

SEAT CLAMP

ER BOLT, 28.6MM

[Table]

STANDOVER HEIGHT	52CM
FRAME	HAND BRUSHED AL6061, FORGED DROP OUTS
FORK	HAND BRUSHED AL6061, FORGED DROP OUTS
STEERER	TUBE AL6061
CRANKS	CNC'D AL6061, 120MM
PEDALS	ER AL6061, CAGE, CARTRIDGE BEARING
BOTTOM BRACKET	ER EXTERNAL CUP, THREADED, SEALED CARTRIDGE BEARING
RIMS	20 X 24H FRONT, 28H REAR, DOUBLE WALLED AL6061
REAR HUB	STURMEY ARCHER X-RF4, 4SP IGH
FRONT HUB	CNC’D AL6061, HOLLOW 7075 AXLE
AXLES	AL6061
BELT	GATES POWERGRIP 976
FRONT SPROCKET	CNC'D AL6061, 46T, AL6061 AXLE
WEIGHT	8.0KGS W/O PEDALS
REAR SPROCKET	CNC'D AL7075, 32T
BRAKES	TEKTRO 837AL
LEVERS	TEKTRO SHORT REACH, JL-510TS
FRONT TYRE	MAXXIS DTH 20 x 1.95 120tpi FOLDING TYRE
REAR TYRE	MAXXIS DTH 20 x 1.95 120tpi FOLDING TYRE
HEADSET	1 1/8” CARTRIDGE BEARING, CONVENTIONAL
STEM	RITCHEY OS FORGED AL6061, 35MM REACH
BARS	560MM RITCHEY OS DOUBLE BUTTED AL6061, 18MM RISE
GRIPS	ER WING 120L, 70R
SEAT POST	RITCHEY, AL6061, 25.4MM x 250MM
SADDLE	ER WINGED
SEAT CLAMP	ER BOLT, 28.6MM

SPEC NOTICE

Every effort has been made to ensure accuracy throughout this website. However, Early Rider reserves the right to change prices and bike specifications without prior notice

[Table spec]

A	Wheelbase	838mm
B	Head Angle	69.5°
C	Seat Tube Length	280mm
D	Chainstay Length	331.5mm
E	Seat Tube Angle	73°
F	Standover Height	515mm
G	Top Tube Length	448mm
H	Head Tube Length	92mm
I	Stack	397.5mm
J	Reach	326mm
K	Fork Length	310mm
